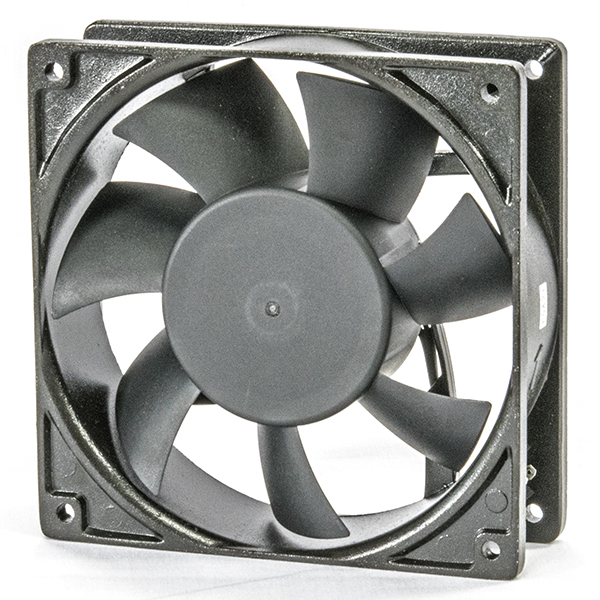

D12038-03

Size:120x120x38mm(4.72"x4.72"x1.50")

0%





    Model No. QTY.

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.

    HOUSING
    IMPELLER
    BEARING
    OPERATING TEMPERATURE
    DIELECTRIC STRENGTH
    INSULATION RESISTANCE
    WEIGHT
    ROHS COMPLIANCE
    IP LEVEL

    Aluminum Die Casting, Painted Black
    Thermoplastic PBT, UL94V-0
    Ball or Sleeve
    -10°C to + 60°C
    5mA Max. at 500 VAC for 1 mintue
    10M Ω min. @500 VDC
    420 g
    Yes
    IP21 (Special IP Rating On Request)
