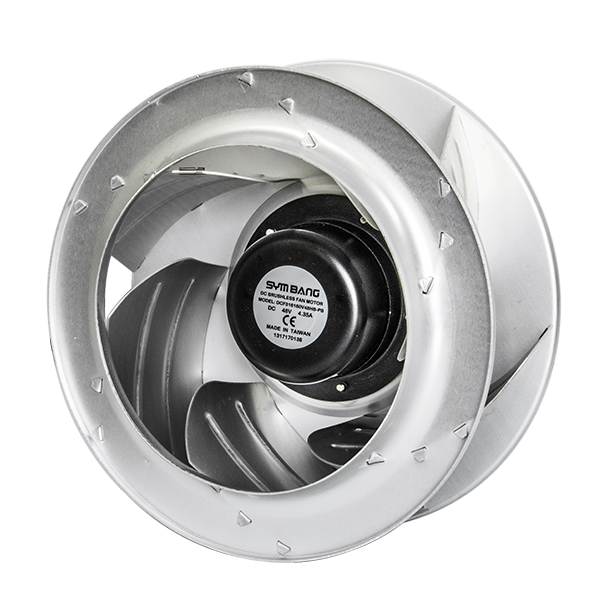

DCF316150-PB

Size:Ø316x150mm(Ø12.44"x5.91")

0%





    Model No. RATED
    VOLTAGE
    (V)
    RATED
    CURRENT
    (A)
    INPUT
    POWER
    (W)
    SPEED
    (RPM)
    MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M
    Sample Price QTY.
    inchH2O mmH2O CFM m3/min
    DCF316150V48H-PB 48 4.35 208 1930 2.33 59.18 1542 43.64 69 238.00

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.

    MOTOR
    IMPELLER
    BEARING
    TERMINATION
    OPERATING TEMPERATURE INSULATION RESISTANCE
    DIELECTRIC STRENGTH
    WEIGHT
    ROHS COMPLIANCE
    IP LEVEL

    Outer rotor motor Ø102mm
    Aluminum
    Ball
    Lead Wire
    -20°C to + 60°C
    10M Ω min. @500 VDC
    5mA Max. at 500 VAC for 1 minute
    4.2 Kg
    Yes
    IP21 (Special IP Rating On Request)

    The standard product is not including the Inlet Ring. If you need it, need to quote separately.
