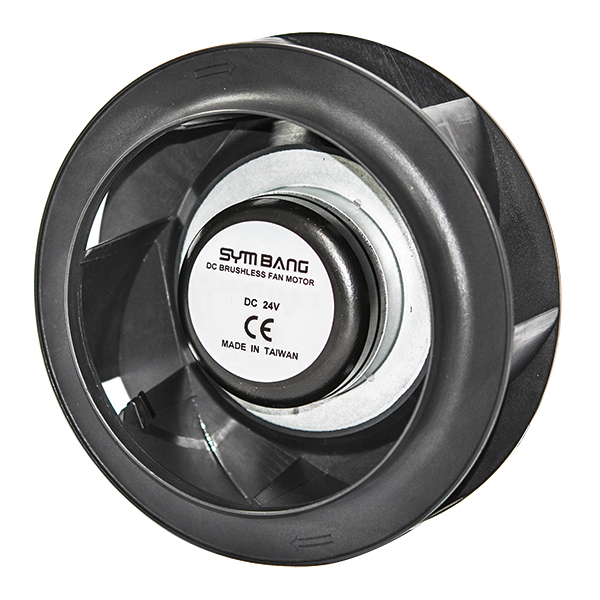

DCF17568-LD

Size: Ø175x68mm(Ø6.85"x2.68")

0%





    Model No. RATED
    VOLTAGE
    (V)
    RATED
    CURRENT
    (A)
    INPUT
    POWER
    (W)
    SPEED
    (RPM)
    MAX. AIR PRESSURE MAX. AIR FLOW NOISE dB(A)
    @1M
    Sample Price QTY.
    inchH2O mmH2O CFM m3/min
    DCF17568V24SLB-LD 24 3.10 75.0 3900 1.77 44.90 364 10.30 72 85.05
    DCF17568V24HB-LD 24 1.40 34.0 3100 1.58 40.13 333 9.42 65 81.45
    DCF17568V48SLB-LD 48 1.60 75.0 3900 1.77 44.90 364 10.30 72 85.05

    *The price is only for sample. Each item price is negotiable if the quantity is large.
      The currency is USD.
      The delivery fee is not included in the unit price.

    IMPELLER
    BEARING
    OPERATING TEMPERATURE
    TERMINATION
    DIELECTRIC STRENGTH
    INSULATION RESISTANCE
    WEIGHT
    ROHS COMPLIANCE
    IP LEVEL

    Plastic Impeller, Metal Plate
    Ball
    -20°C to 60°C
    Lead Wire
    5mA Max. at 500 VAC for 1 minute
    10M Ω min. @500 VDC
    780 g
    YES
    IP44 (Special IP Rating On Request)
